BL4260 BL4260I B4260M 12V 18V 24V 42mm inner rotor brushless dc motor by kegumotor

Name: BL4260 BL4260I B4260M 12V 18V 24V 42mm inner rotor brushless dc motor by kegumotor
Brand: Kegu motor
Price: 11.5 USD

China BL4260 BL4260I B4260M 12V 18V 24V 42mm inner rotor brushless dc motor by kegumotor wholesale

Brand Name : Kegu motor

Model Number : bl4260i

Certification : ISO,CE,ROSH

Place of Origin : china

MOQ : 1PCS

Price : 11.5

Payment Terms : L/C,T/T,Western Union

Supply Ability : 50000pcs/week

Delivery Time : 25-30 DAYS

Contact Now

Product Description

42mm 6v 24v mini brushless BL4260 dc motor 50W for Toy Car

42mm 12V high torque brushless dc micro motor BL4260 Brushless motor

BL4260 BL4260I B4260M 12V 18V 24V 42mm inner rotor brushless dc motor by kegumotor

Volt	12v
No Load Speed	2308rpm
Rated Speed	1773rpm
Rated Torque	480g.cm
Application	Robot , door lock , toy, cabinet lock

SPECIFICATION:

1. Voltage: DC 24V
2. No load speed: 8458±10%rpm
3. No load current: 0.4A
4. Diameter 36mm, length 50mm, shaft dia 4.0mm
5. Material: plastic gear and metal DC motor
6. Weight: 160g Approx
7. Application:Robot, Bike lock, Home Appliance, Door Lock etc
8. Customized,Adjust the performance at free(voltage, speed, torque)

Kegu Motor Provide intelligent lock solution

Special imported steel for gear material, minimum modulus (0.15 mode), ultra-low noise, high reliability.The motor adopts high
anti-oxidation commutator and brush material, which has
the characteristics of smooth operation, long life and small vibration.
* High Torque

* Low Noise

* Longer life time up to 200,000 times unlock

Detailed Images

BL4260 permanent magnet electric brushless micro dc 5.0V USB mini fan motor

Our factory support for customing many model type brushless dc motor, it can be according as follow:

1) Model type or size:Main model type or size, shaft size, extend shaft size;

2) Parameter:Voltage, speed, current, torque……

3) Usage:That brushless dc motor use for which product?

4)DC motor type:Normal micro motor, vibration motor, gear motor, pump motor?

5) Other request:If it need Eco-friendly?

Or anti-interference? life expectancy, noise amplitude and so on.
DC Brushless Motor Series 24mm Series 28mm,Series 36mm,Series 42mm

Size Information

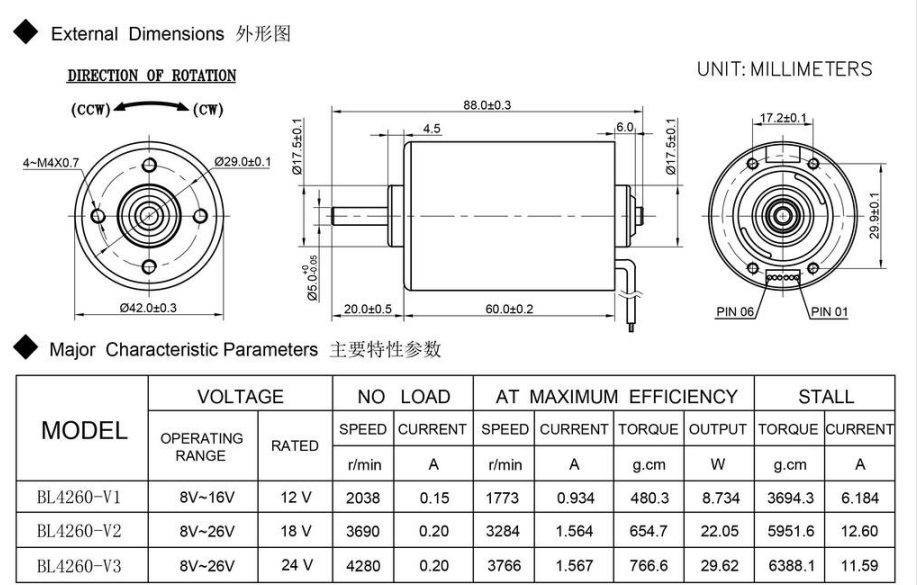

Drawing of BL4260 42mm DC brushless motor

Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Recommended by seller

high speed motor 15000rpm rs-775 42mm dc brushless motor for power tools rs-775vc-7011 rs-775vc-9510 rs-775vc-8015

$2.80 - $4.50/ Piece

1.0 Pieces

High torque electrical 18v dc motor KRS-550SH RS-550PH for cordless power tools

$1.00 - $7.50/ Piece

1.0 Pieces

Kegu motor 60kg.cm high torque 12v 24v mini low rpm brush 58mm dc electric worm gear self-locking motor

$6.57 - $17.50/ Piece

1.0 Pieces

32mm Worm Gear Motor 6v 12V 12 Volt 24v Reduction Gearbox Motor for vending machines

$2.57 - $7.50/ Piece

50.0 Pieces

12V 24V 36 Volt Brushless Geared Dc Motor 16mm 22mm 28mm 36mm 42mm 52mm dc planetary metal geared motor with RS 775 dc motor

$12.00/ Piece

1 Piece

high torque 10mm Mini DC motor 3V 6V 12V DC Gear motor for smart car Door Lock Actuator

$1.20/ Piece

1 Piece

low rpm 3v 6v 9v 12v dc 12mm N20 gear motor with encoder and gearbox

$12.10/ Piece

10000 Pieces

25mm 6v 12v 24v mini dc toy gear box motor with reduction gear for vending machines

$2.27 - $7.50/ Piece

1.0 Pieces

low noise mini 6mm dc coreless 1.5v 3v 3.7v plastic planetary gear motor for smart lock

$3.16/ Piece

1 Piece

GM25-2418 Durable 24V 25mm BL2418 brushless Motor Low Noise Electric DC Brushless Gear Motor

$2.27 - $7.50/ Piece

1.0 Pieces

Mini DC Gear Motor 12V 24V D Shaft 37mm Gearbox Motor Reduction Small Electric Motor with Encoder

$3.00 - $7.50/ Piece

50.0 Pieces

1.5v 3v 5v 6v 9v 12v high torque 12mm micro dc planetary gear motor with plastic planetary gearbox

$2.10/ Piece

1 Piece

Packing&Shipping

After Sales Service

The reliability and stability of the product is an important index to evaluate the technical level of the product.In order to accurately analyze, evaluate and verify the performance of the product.

So Kegu motor will reply customer in 2 days after receive
complain from customer. Engineer team analyze the reasons according to customer complain and evaluate manufacturing process.After confirm the motor issue,customer can return defect motor, we will ship out all motors after repair motors.

Company Introduction

Shen Zhen Ke Gu Technology Co.,Ltd, it is a high-tech private enterprise integrating research, development, production and sales of various types of miniature DC motors, precision gearbox, micro transmission of system. We also provide the drive solutions for customers from design, components manufacturing and assembly.The company strictly implements the IS9001:2015 management system.

Products are widely used in automotive,communications equipment,smart home,medical equipment, intelligent security,household appliances,western kitchen equipment,machinery and electronics and other high-end transmission structures,products are exported to more than 50 countries and regions at home and abroad.

Our Services & Strength

R&D team is committed to designing and developing micro drive systems for many years and providing drive system solutions for customers.

Provide customized, design, development, production and assembly services of micro gear transmission system.

Certifications

FAQ

Q:1.What kind of motors you can provide?

A:Full range of precision gearbox, diameters 6mm,8mm,10mm,12mm,13mm,16mm,20mm,22mm,24mm,28mm,32mm,36mm,37mm,42mm,48mm, output speed 5-3000rpm,reduction ratio 5-1500, output torque 1g.cm to 50kg.cm

Q:2. Can you send me a price list?
A: For all of our motors, they are customized based on different requirements like lifetime, noise, voltage, and shaft etc. The price also varies according to annual quantity. So it's really difficult for us to provide a price list. If you can share your
detailed requirements and annual quantity, we'll see what offer we can provide.

Q:3. What's the lead time for regular order?
A: For orders, the standard lead time is 25-40 days and this time can be shorter or longer based on different model, period and quantity.

Q:4. Is it possible for you to develop new motors if we can provide tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.

Q:5. Can I get some samples?
A: It depends. If only a few samples for personal use or replacement, I am afraid it'll be difficult for us to provide because all of our motors are custom made and no stock available if there is no further needs. If just sample testing before the official order and our MOQ, price and other terms are acceptable, we'd love to provide samples.

BL4260 BL4260I B4260M 42mm inner rotor brushless dc motor

BL4260i BL4260 B4260M OD Diameter 42mm Small inner rotor Brushless DC BLDC motor

42mm bldc motor with inbuilt controller series.

BL4260

Output Power: 5W~60WWeight: 296g (Approx.)

brushless dc motor-Typical Application

Home Application: White Goods, Small Appliance, Fanner, Coffee Machine, Milk Tea Machine

Medical Apparatus: Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine

Industry Equipment: Pump, Portable Screwdriver, Small Compressor

Business Equipment: Printer, Copier, Projector, ATM, Vending Machine

Personal Care: Hair Dryer, Electric Shaver, Massager

BL4260 BL4260I B4260M 12V 18V 24V 42mm inner rotor brushless dc motor by kegumotor Images
